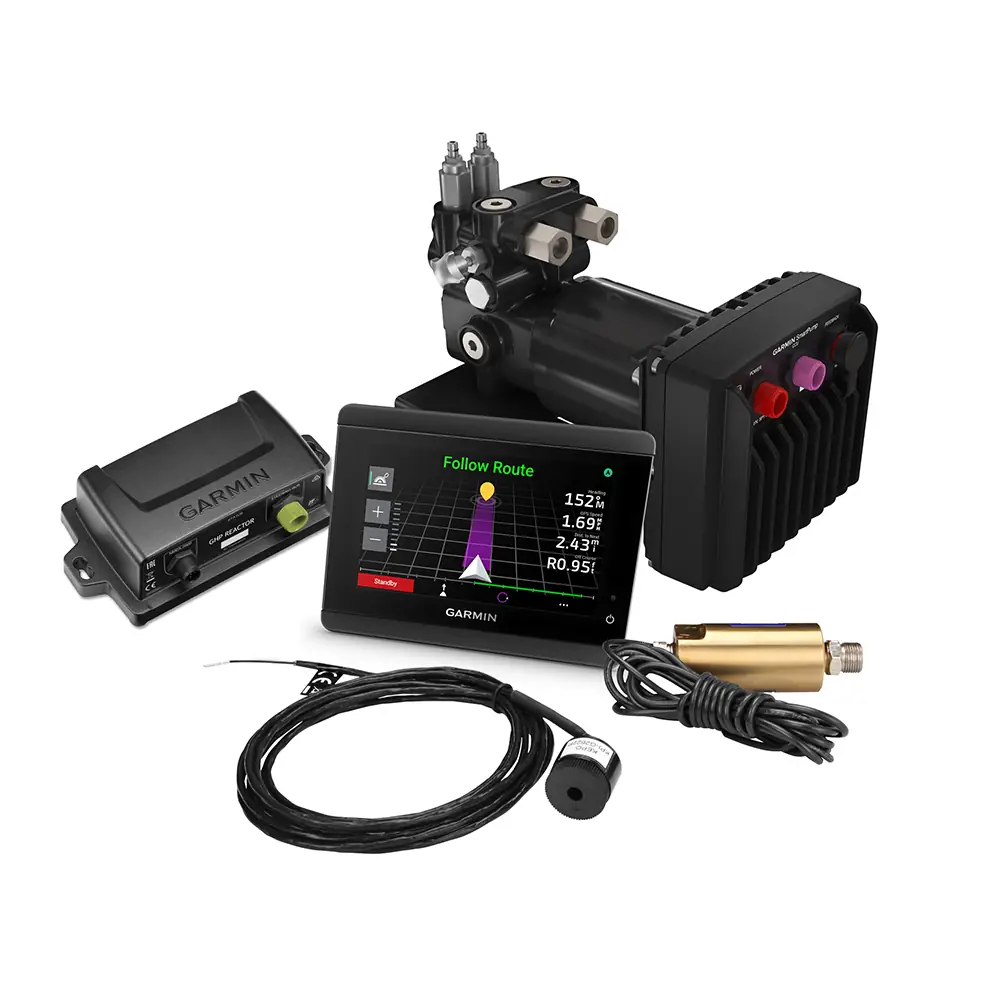

Reactor™ 40 Hydraulic Corepack with SmartPump v2 & GHC™ 50 Autopilot Instrument Pack

Every Captain Needs a Co-Pilot. Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump v2 and GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

• This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
• With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more.
• Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
• You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity.
• Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)
• The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability, and lower power consumption.
• Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
• Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
• When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications – SmartPump v2:

• Dimensions (H x W x D) – 7 3/4″ x 7 1/2″ x 9 5/8″ (197 mm x 190 mm x 244 mm)
  • Weight – 16.5 lbs (7.5 kg)
  • Temperature range – From 5°F to 131°F (from -15°C to 55°C)
  • Material – Electronics Control Unit (ECU) – fully gasketed, aluminum alloy.  Bracket – carbon steel.  Manifold – aluminum alloy.  Motor – aluminum alloy
  • Power cable length – 9 ft (2.7 m)
  • Power input – 11.5-30 Vdc
  • Fuse – 40 A, blade-type
  • Main power usage (standby) – less than 1 A.
  • Main power usage (engaged) – 5-10 A and peak – 34 A
  • Flow rate – Configurable from 0 to 2.4 L per minute
  • Compatible with steering cylinder sizes from 4-24 cu in.  7-second lock to lock up to 17 cu in

Technical Specifications – CCU:

• Dimensions: 3 19/32″ diameter (91.4 mm)
• Weight: 5.6 oz (159 g)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5′ (3 m)
• NMEA 2000 power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

Technical Specifications – Buzzer/Alarm:

• Dimensions (L × Diameter) – 29/32″ × 1.0″ (23 mm × 25 mm)
• Weight – 2.4 oz (68 g)
• Temperature range – from 5°F to 131°F (from -15°C to 55°C)
• Cable length – 10′ (3.0 m)

Technical Specifications – Reactor 40:

• Unit dimensions (W x H x D) – 4.3″ x 4.4″ x 1.9″ (10.9 x 11.2 x 4.8 cm)
• Display resolution (W x H) – 320 x 240 pixels
• Display Type – QVGA color LCD display
• NMEA output – NMEA 2000
• Supply voltage – 10 to 20V
• Operating temperature – -15° C to 70 C° (5° F to 158° F)

Technical Specifications – GHC™ 50:

• Dimensions (H x W x D) – 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
• Display Type – 800 x 480 WVGA
• Display Size – 5″ (12.7 cm)
• Touch Display – Yes
• Knob Control – With GRID 10/20
• Remote Control via ANT+® Connectivity – Yes
• Wi-Fi Connectivity – Yes
• NMEA 2000 Networking – Yes
• Ethernet – Yes

What’s in the Box?

• GHC™ 50 Marine Autopilot Display
• SmartPump v2
• Reactor 40 CCU (Course Computer Unit)
• ECU (Electronic Control Unit) power cable
• Interconnect cable
• Shadow Drive
• Buzzer
• NMEA 2000® drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

*Sold as an Individual
